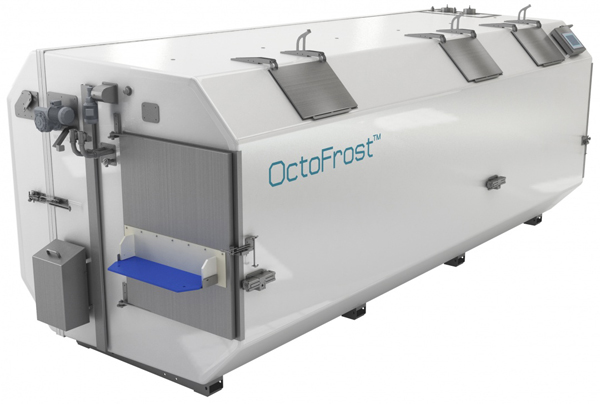

The OctoFrost™ is an innovative IQF freezer with a unique set of features. Designed for individual quick freezing of volumes between 500-15,000 kg/h, the OctoFrost™ IQF tunnel excels at handling sticky, fragile and otherwise difficult products.

In every detail the OctoFrost™ is different to conventional IQF freezers. We have replaced the common conveyor belt with removable bedplates, for easy product change and reliable hygiene. The aerodynamics of the OctoFrost™ individual quick freezing tunnel, can be fine-tuned in individually controlled freezing zones, for low dehydration and gentle processing of a wide variety of products.

Depending on your need for capacity we have a range of models to suit your needs. With the small and compact footprint of OctoFrost™ freezers, it is on some occasions even possible to fit two OctoFrost™ in the space of one traditional belt freezer to significantly increase capacity.



Nominal capacity*

Lay-out drawings

Model 2/1 1350 kg/hr, 2970 lbs/hr Left-hand  Right-hand
Model 3/2 2000 kg/hr, 4400 lbs/hr Left-hand  Right-hand
Model 4/2 2600 kg/hr, 5720 lbs/hr Left-hand  Right-hand
Model 5/2 3300 kg/hr, 7260 lbs/hr Left-hand  Right-hand
Model 6/2 4000 kg/hr, 8800 lbs/hr Left-hand  Right-hand
Model 7/2 4650 kg/hr, 10230 lbs/hr Left-hand  Right-hand
Model 8/2 5300 kg/hr, 11660 lbs/hr Left-hand  Right-hand
Model 9/2 5900 kg/hr, 12980 lbs/hr Left-hand  Right-hand
Model 10/2 6600 kg/hr, 14520 lbs/hr Left-hand  Right-hand
Model 11/2 7300 kg/hr, 16060 lbs/hr Left-hand  Right-hand
Model 12/2 8000 kg/hr, 17600 lbs/hr Left-hand  Right-hand
Model 13/2 8600 kg/hr, 18920 lbs/hr Left-hand  Right-hand
Model 14/2 9300 kg/hr, 20460 lbs/hr Left-hand  Right-hand


The frozen products preserve its natural shape, smell, color and volume, for a Natural Appearance.

Premium product appearance and low dehydration contribute to High Yield.

Hygienic mono-block design and an effective Clean In Place system put Food Safety in focus.

The efficient aerodynamics and the unique OctoFrost™ technology insures Energy Efficiency.

Download Catalogue

* = Nominal capacity is based on peas. For other products the true capacity depends on product, size, in- and out feed temperature etc. Please contact us for calculation of your freezer size
